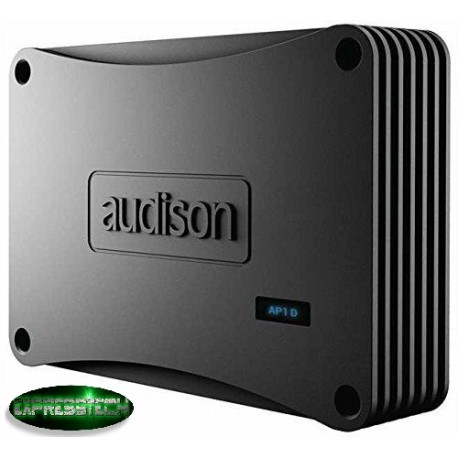

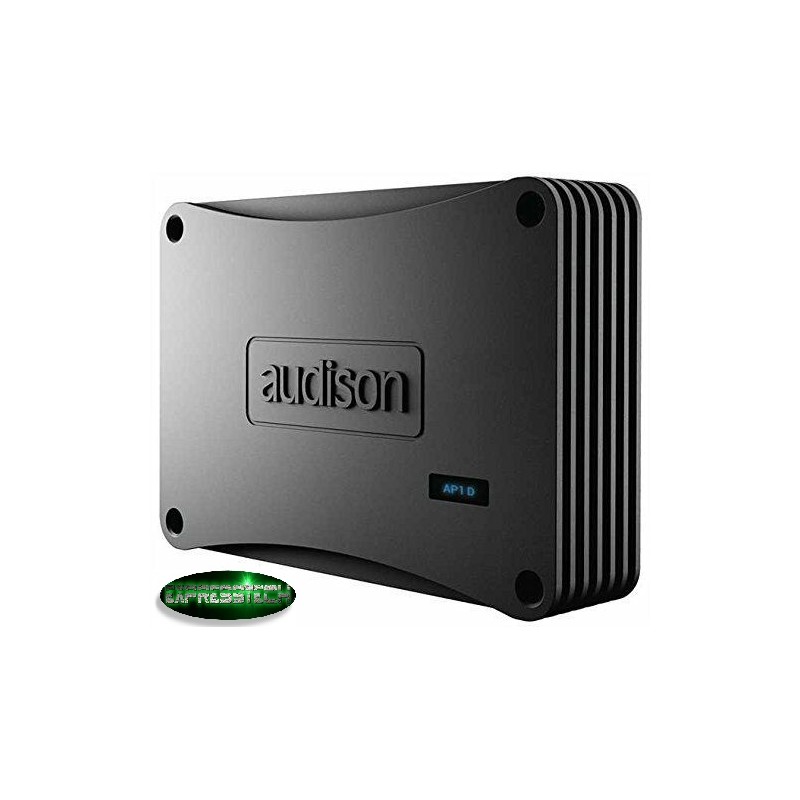

AUDISON AP 1D Amplificatore Monofonico Subwoofer Sub 680W Ver más grande

AUDISON AP 1D Amplificatore Monofonico Subwoofer Sub 680W

233

Nuevo

5 Artículos

499,00 € impuestos incl.

Más información




AUDISON AP1 D ap 1 d AMPLIFICATORE MONO 540 WATT

L'amplificatore Audison Ap1 D è  progettato per pilotare un subwoofer  e può essere collegato agli amplificatori Audison Ap 4.9 bit e Ap5.9 Bit


E' possibile impilare l'AP1D con gli altri amplificatori Audison Prima grazie al
sistema APTK 3 (Audison Prima Torre Kit 3 Opzionale) e risparmiare spazio senza alcun problema di surriscaldamento.

Nati per soddisfare le esigenze di installazione veloce, compatta con gli impianti originali.
Potenza, eleganza e facilità di collegamento unita alle ridotissime dimensioni ne permetto l'inserimento totalmente a scomparsa.

 POWER SUPPLY
Voltage: 7.5 ÷ 15 VDC
Idling current: 1 A
Switched off: <0.05 mA
Consumption @ 14.4 VDC 4Ω Max Musical Power (without CPL): 30 A
Consumption @ 14.4 VDC 2Ω Max Musical Power (without CPL): 44 A
Remote IN 7 ÷ 15 VDC (1 mA)
Fuse 30 A

AMPLIFIER STAGE
Distortion - THD @ 1 kHz, 4 Ω, 90% Power: 0.2 %
Distortion - THD @ 100 Hz, 4 Ω, 90% Power: 0.3 %
Bandwidth (-3 dB, 2 V RMS, 4Ω): 16 ÷ 40k Hz
S/N ratio @ A weighted, 1,5V, Max Power: 100 dBA
Damping factor @ 100 Hz, 2 VRMS, 4 Ω: 150
Damping factor @ 1 kHz, 2 VRMS, 4 Ω 160
Input sensitivity PRE IN: Selectable: 1,5 - 3,0 - 4,5 V RMS
Input sensitivity SPEAKER IN: Selectable: 3,0 – 6,0 – 9,0 V RMS
Input impedance: 15k Ω

LOAD IMPEDANCE (MIN):

• Ch: 1 2Ω
MAX POWER 540 W
OUTPUT POWER (RMS) @ 14.4 VDC, 1% THD:
• 1 Ch @ 4Ω: 310 W x 1
• 1 Ch @ 2Ω: 540 W x 1
OUTPUT POWER (RMS) @ 14.4 VDC, 10% THD:
• 1 Ch @ 4Ω: 380 W x 1
• 1 Ch @ 2Ω: 680 W x 1

GENERAL REQUIREMENTS
Ambient operating temperature range: 0 °C to 55 °C (32°F to 131°F)
SIZE / WEIGHT
Max size (mm/in.): 198 x 45,50 x 134 / 7.8 x 1.8 x 5.27
Weight (kg/lb): 1.32 / 2.91
